FX-1R Pick and Place Machine SMT Chip Mounter for JUKI

Condition : Used

Weight (KG) : 1000

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC

Place of Origin : Japan

Brand Name : Pick and Place Machine

Model Number : RS-1

Warranty : 1 Year

Product name : FX-1R Pick and Place Machine

skype : sensenhenhao

whatsapp/wechat : +8613424013606

Applicable Components : 0402,Minimum 01005-38*38*8.5m

Usage : SMD LED SMT

Application : SMT Assembly Production Line

Film Materials : Privacy Material

Power Supply : AC220V 50Hz / AC110V

Lead time : 7-30days

Packaging Details : FX-1R Pick and Place Machine packing with vacuum wooden carton

Port : shenzhen

Supply Ability : 1000000 Piece/Pieces per Month FX-1R Pick and Place Machine

Price : $1.00 - $2.00/pieces

Contact Now

FX-1R Pick and Place Machine SMT Chip Mounter for JUKI

whatsapp:+8613424013606,skype:sensenhenhao,wechat:JoyLY0322

WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .

Also can support some original parts of machine repair.

FX-1R Pick and Place Machine SMT Chip Mounter for JUKI

FX-1R Pick and Place Machine details:

The High-speed Modular Mounter FX-1R is a traditional modular chip

shooter driven at extreme speeds. Refinements in the drive system
deliver real world improvements in actual throughput.
For the 0402-20mm chip or special-shaped components, small-scale high-speed placement.

JUKI fx-1r Mounter Features:
JUKI high-speed placement machine fx-1r adopts advanced linear motor and unique
hi-drive mechanism for high-speed placement.
Inherited the traditional concept of modular placement machine,
and realized a high-speed placement of the placement machine.
Reasonably adjust all parts and improve the actual mounting speed.

SMT chip Mounter fx-1r parameters:
Board size: 410*360mm
Component height: 6mm
33,000CPH:chip (optimal) / 25,000CPH: chip (IPC 9850)
Two independent multi-nozzle laser heads (8 total nozzles)
from 0603 (0201) to 20mm square components or 26.5×11mm
0402 (01005) option factory installed.
Component Size: Laser Recognition 0603 (Inch 0201) Chip ~20mm Square Element or 26.5*11mm
Component placement speed:chip:33000cph (best condition)
Chip piece: 25000cph (ipc9850)
Component placement accuracy: ±0.05mm
Component placement type: up to 80 types
Power supply: three-phase ac200~415v
Rated power: 3kva
Air pressure: 0.5±0.05mpa
Machine size: 1,880×1,731×1,490mm

Weight: about 2000kg

FX-1R Pick and Place Machine SMT Chip Mounter for JUKI

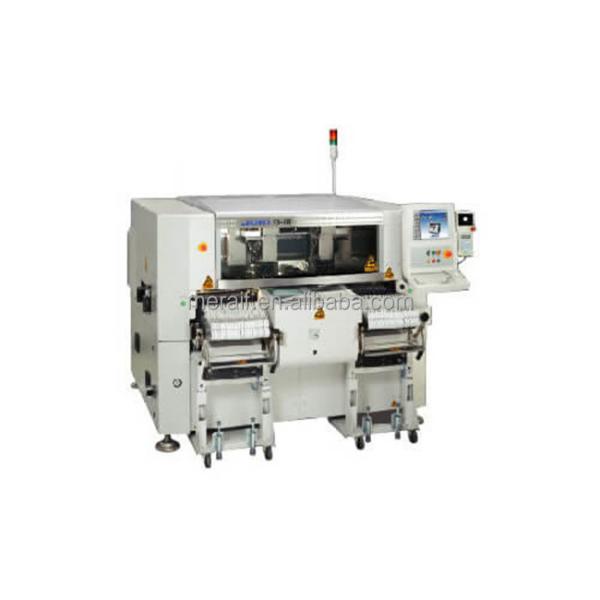

FX-1R Pick and Place Machine picture show:

FX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKI

FX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKI

FX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKI

FX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKI

FX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKIFX-1R Pick and Place Machine SMT Chip Mounter for JUKI

Smt machine parts we can support you as follow:
